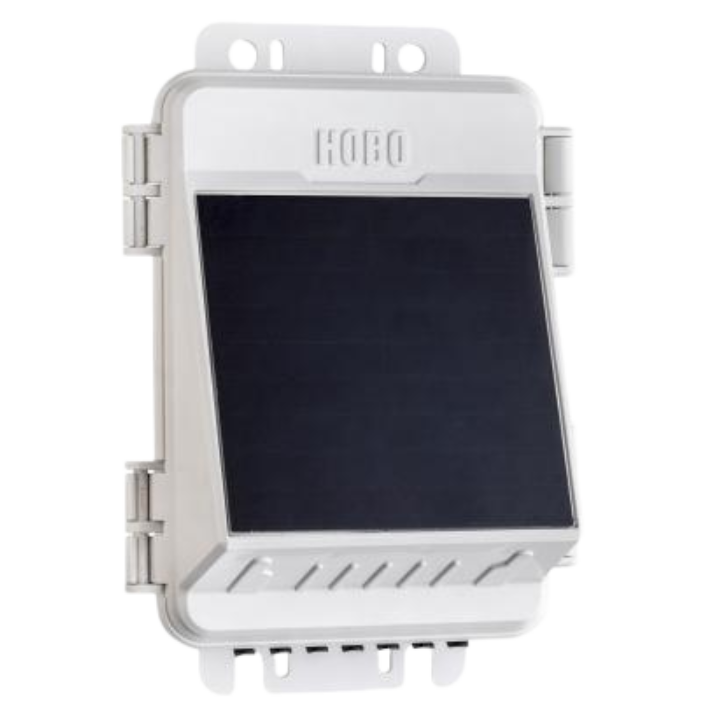

HOBO MicroRX Station
Overview
With two power options available (a solar panel for extended deployments or user-replaceable batteries for flexible mounting in covered or protected locations), this monitoring station includes inputs for up to five of our research-grade plug-and-play sensors. (Sensors must be purchased separately.)
Configurable station-side alarms trigger immediate notifications of critical conditions, and LI-COR Cloud (formerly HOBOlink) platform makes it easy to view, access, and share data. This station can also be ordered with an additional water level sensor input with integrated flow conversion.
Features
- Compact size for easy deployment
- Robust, weatherproof IP66/NEMA 4X enclosure
- Two power options:
- Integrated 1.7 W solar panel with rechargeable battery pack
- 5 W and 15 W external solar panels can be added to MicroRX Station (RX2102), MicroRX Water Level Station (RX2104) or MicroRX Station for HOBOnet (RX2106)
- User-replaceable AA lithium batteries
- Integrated 1.7 W solar panel with rechargeable battery pack
- Inputs for five plug-and-play sensors
- Option for wireless sensors using HOBOnet (RX2106 only)
- Optional water level sensor input included in MicroRX Water Level Station, battery-powered (RX2103) and MicroRX Water Level Station, solar-powered (RX2104)
- Built-in LCD confirms proper setup and operation
- Integrated mounting tabs for use with screws, zip ties, or U-bolts
- Station-side alarms, including water flow and accumulated rainfall
- Up to 10-minute connection rates via 4G cellular data plans
- Cloud-based monitoring and data access through HOBOlink
Specifications
Operating Range
MicroRX Station, battery-powered (RX2101 and RX2105) and Micro RX Water Level Station, battery-powered (RX2103): -40° to 60°C (-40° to 140°F)
MicroRX Station, solar-powered (RX2102), MicroRX Water Level Station, solar-powered (RX2104) and MicroRX Station for HOBOnet, solar-powered (RX2106): -20° to 60°C (-4° to 140°F)
Smart Sensor Connectors
5
Smart Sensor Network Cable Length
100 m (328 ft) maximum
Smart Sensor Data Channels
Maximum of 15 (some smart sensors use more than one data channel; see sensor manual for details)
Logging Rate
1 minute to 18 hours
Time Accuracy
±8 seconds per month in 0° to 40°C (32°F to 104°F) range;
±30 seconds per month in -40° to 60°C (-40° to 140°F) range
Battery Type/Power Source
RX2102, RX2104 and RX2106: Integrated 1.7 watt solar panel and NiMH rechargeable battery pack; optional AC power adapter (P-AC-1) or external solar panel (SOLAR-xW) can be used in place of integrated solar panel
RX2101, RX2103 and RX2105: 6 AA 1.5 V lithium batteries or AC power adapter (P-AC-1)
Battery Life
RX2102, RX2104 and RX2106 Battery Life:
Typical 3–5 years when operated in the temperature range -20° to 40°C (-4° to 104°F); operation outside this range will reduce the battery service life.
Maximum connection rates with built-in solar panel, in full sun:
- 10 minute connections year round for latitudes less than ±40°
- 10 minute connections through three seasons in other regions, reduced to 30 minute connections in winter
Maximum connection rates with external 5W or 15W solar panels:
- 10 minute connections year round, in full sun
- Connection rate with external solar panels may be less if deployed in partial sun
Battery life without solar recharging, with hourly connections and
1 minute logging:
- RX2102: 3 months
- RX2104: 2 months
- RX2106: 3 months
RX2101 and RX2103 Battery Life:
Battery life with daily connections:
- RX2101: 1 year with 1 minute logging
- RX2103: 1 year with 2 minute logging
Battery life with hourly connections and 1 minute logging:
- RX2101: 3 months
- RX2103: 2 months
Note: Deployments in areas with weak cellular strength could reduce battery life.
RX2105 Battery Life:
Runs continuously with the included AC adapter. Batteries can be used as a backup to AC power; battery life of 3 months with 1 minute logging and daily connections or 2 months with 1 minute logging and hourly connections, and with approximately 10 motes. Note: Deployments in areas with weak cellular strength could reduce battery life.
Memory
16 MB, 1 million measurements, continuous logging
Alarm Notification Latency
Logging interval plus 2-4 minutes, typical
Enclosure Access
Hinged door secured by two latches with eyelets for use with user-supplied padlocks
LCD
LCD is visible from 0° to 50°C (32° to 122°F); the LCD may react slowly or go blank in temperatures outside this range
Materials
Outer enclosure: Polycarbonate/PBT blend with brass inserts; Interior: Polycarbonate/PBT; Gasket: Silicone foam; Cable channel: Santoprene™ TPE; U-Bolts (not included): Steel with zinc dichromate finish
Dimensions
19.95 x 13.68 x 7.49 cm
7.85 x 5.39 x 2.95 in.
Weight
678 g
23.9 oz
Mounting
Optional U-bolts are compatible with masts up to 4.14 cm (1.63 in.) mast diameter; can also be mounted with zip ties or mounted to a flat surface with screws
Environmental Rating
Weatherproof enclosure, NEMA 4X and IP66
requires proper installation of cable channel system
Wireless Radio
GSM/GPRS/EDGE: Quad band 850/900/1800/1900 MHz
UMTS/HSPA+: Seven band 800/850/900/1800/1900/2100 MHz
LTE: Twelve Band 700/800/850/900/1800/1900/2100/2600 MHz
Antenna
4G LTE
