Overview

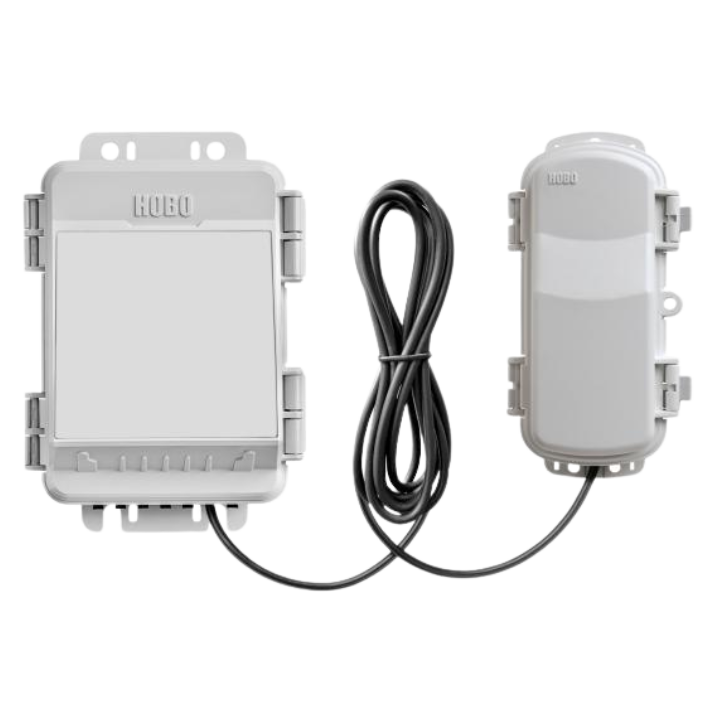

An easy-to-deploy, low-cost cellular monitoring station for long-term, reliable monitoring of indoor conditions in warehouses, cold storage facilities, data centers, museums, commercial and residential buildings, and more. This station includes an integrated HOBOnet Manager for easy deployment with wireless HOBOnet sensors. The station also features inputs for up to five of HOBO research-grade plug-and-play sensors. Configurable station-side alarms trigger immediate notifications of critical conditions, and the LI-COR Cloud (formerly HOBOlink) software platform makes it easy to view, access, analyze, and share data.
Features
- Compact size and integrated HOBOnet Manager for easy deployment
- Scalable, with option to connect up to 50 wireless sensors; 600 m line-of-sight range
- Inputs for five plug-and-play sensors
- Includes AC power adapter and user-replaceable AA lithium batteries for battery back-up
- Built-in LCD confirms proper setup and operation
- Up to 10-minute connection rates via 4G cellular data plans
- Cloud-based monitoring and data access through HOBOlink
- Integrated mounting tabs for use with screws, zip ties, or U-bolts
Specifications
Station
Operating Range
RX2105: -40° to 60°C
-40° to 140°F
Smart Sensor Connectors
5
Smart Sensor Network Cable Length
100 m (328 ft) maximum
Smart Sensor Data Channels
Maximum of 15 (some smart sensors use more than one data channel; see sensor manual for details)
Logging Rate
1 minute to 18 hours
Time Accuracy
±8 seconds per month in 0° to 40°C (32°F to 104°F) range;
±30 seconds per month in -40° to 60°C (-40° to 140°F) range
Battery Type/Power Source
RX2105: AC power adapter (P-AC-1) and 6 AA 1.5 V lithium batteries
Battery Life/Power Source
RX2105:
Runs continuously with the included AC adapter.
Batteries can be used as a backup to AC power; battery life of 3 months with 1 minute logging and daily connections or 2 months with 1 minute logging and hourly connections, and with approximately 10 motes. Note: Deployments in areas with weak cellular strength could reduce battery life.
Alarm Notification Latency
Logging interval plus 2-4 minutes, typical
Enclosure Access
Hinged door secured by two latches with eyelets for use with user-supplied padlocks
LCD
LCD is visible from 0° to 50°C (32° to 122°F); the LCD may react slowly or go blank in temperatures outside this range
Materials
Outer enclosure: Polycarbonate/PBT blend with brass inserts; Interior: Polycarbonate/PBT; Gasket: Silicone foam; Cable channel: Santoprene™ TPE; U-Bolts (not included): Steel with zinc dichromate finish
Dimensions
19.95 x 13.68 x 7.49 cm (7.85 x 5.39 x 2.95 in.); see diagrams at left
Weight
678 g
23.9 oz
Mounting
Optional U-bolts are compatible with masts up to 4.14 cm (1.63 in.) mast diameter; can also be mounted with zip ties or mounted to a flat surface with screws
Environmental Rating
Weatherproof enclosure, NEMA 4X and IP66
requires proper installation of cable channel system
Wireless Radio
GSM/GPRS/EDGE: Quad band 850/900/1800/1900 MHz
UMTS/HSPA+: Seven band 800/850/900/1800/1900/2100 MHz
LTE: Twelve Band 700/800/850/900/1800/1900/2100/2600 MHz
Antenna
4G LTE
Manager
Operating Range
-25° to 60°C
-13° to 140°F
Radio Power
12.6 mW (+11 dBm) non-adjustable
Transmission Range
Reliable connection to 457.2 m (1,500 ft) line of sight at 1.8 m (6 ft) high
Reliable connection to 609.6 m (2000 ft) line of sight at 3 m (10 ft) high
Wireless Data Standard
IEEE 802.15.4
Radio Operating Frequencies
RX210x-922: 916â924 MHz
RX210x-921: 921 MHz
RX210x-900: 904-924 MHz
RX210x-868: 866.5 MHz
Modulation Employed
OQPSK
Offset Quadrature Phase Shift Keying
Data Rate
Up to 250 kbps, non-adjustable
Duty Cycle
<1%
Maximum Number of Motes
50 motes per one HOBOnet wireless sensor network
Power Source
Powered by the station
Dimensions
Mote: 16.2 x 8.59 x 4.14 cm (6.38 x 3.38 x 1.63 inches)
Cable length: 2 m (6.56 ft)
Weight
159 g
5.62 oz
Materials
PCPBT, silicone rubber seal
Environmental Rating
IP67, NEMA 6
