Overview

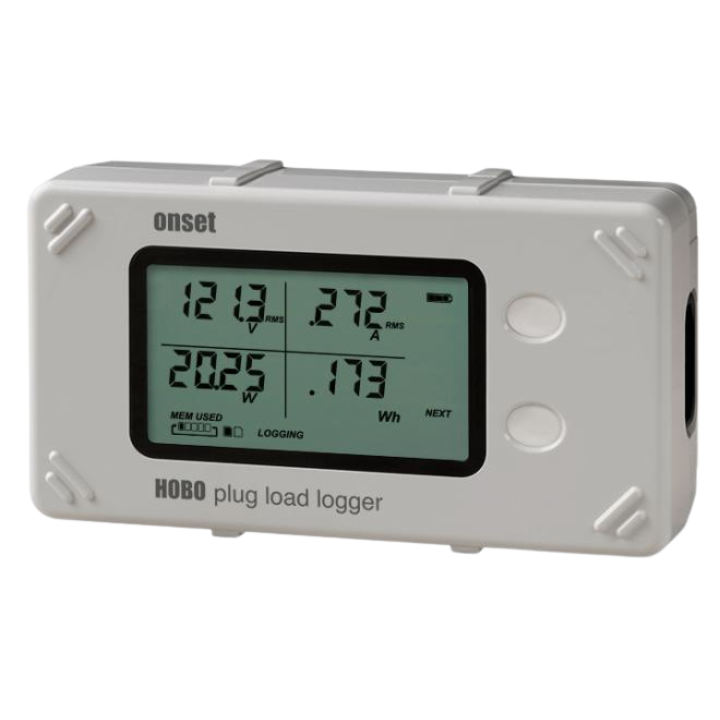

A high-accuracy, easy-to-deploy data logger that measures and records the power and energy consumption of 120V plug loads from office equipment, vending machines, and other devices. These devices can simply be plugged into the logger, and it will record all the key power parameters. This UL-certified logger provides 0.5% measurement accuracy with a measurement resolution of 1 watt, making it an ideal choice for building audits where detailed energy use data is required. The rugged housing is designed to withstand the rigors of real-world handling, providing reliable performance despite bumps, drops, and use under desks.
Features
No Electrician Required
Simply plug in the device that needs to be monitored.
- 0.5% measurement accuracy enables more reliable plug load energy data
- “Meter Mode” provides instant viewing of real-time plug load variables
- Provides time-stamped and totalized load data for detailed energy analysis
- Large memory enables faster logging intervals for more comprehensive plug load profiles
- Battery backup ensures logged data remains intact in the event of a power outage or load failure
- Full-featured LCD display provides visual diagnostics for easy deployment
- Compatible with HOBOware and HOBOware Pro software for logger setup and graphing & analysis
Specifications
Note: The UX120-018 logger is intended for use on 15 AMP circuits (NEMA 5-15P) with a working voltage of 120V AC ±10% at 50/60Hz and a max power of 1800W.
- Indoor use only
- Insulation category 2
Maximum Current: 15 Amps
| RMS Voltage Accuracy: | 0.5% up to 14 Amp continuous; up to 1.0% over 14 Amp when equipment being monitored is at 100% duty cycle |
| RMS Current Accuracy: | 0.5% up to 14 Amp continuous; up to 1.0% over 14 Amp when equipment being monitored is at 100% duty cycle |
| Active Power Accuracy: | 0.5% up to 14 Amp continuous; up to 1.0% over 14 Amp when equipment being monitored is at 100% duty cycle |
| Active Energy Accuracy: | 0.5% up to 14 Amp continuous; up to 1.0% over 14 Amp when equipment being monitored is at 100% duty cycle |
| Power Factor Accuracy: | ±0.02 |
| Drift: | Up to 0.5% typical within 1 year |
| Resolution: | Volts, rms10mVAmps, rms0.1mAActive Power10mW down to 1 watt loads @ 120VACActive Energy10mWApparent Power10mVAPower Factor0.01 PF |
| Operating Environment: | Logging: 5° to 40°C (41° to 104°F); 0 to 95% RH (non-condensing), up to 2,000 m (6,562 ft) altitude |
| Operating Modes: | Meter or logging when launched with HOBOware |
| Logging Rate: | 1 second to 18 hours, 12 minutes, 15 seconds |
| Statistics Sampling Rate: | 60 Hz or 16.67 mS single-cycle |
| Memory Modes: | Wrap when full or stop when full |
| Start Modes: | Immediate, push button, date & time, or next interval |
| Stop Modes: | When memory full, push button, or date & time |
| Restart Mode: | Push button |
| Time Accuracy: | ±1 minute per month at 25°C (77°F), see Plot A |
| Power Source: | Line-powered with 0.92 m (3 ft) AC power cord or two AAA 1.5 V alkaline batteries, user replaceable |
| Battery Life: | 2 years with line power; 6 months battery only (no line power) with logging rate of 1 minute or greater operating at 25°C (77°F) |
| Memory: | 4 MB (1.4 million measurements, maximum) |
| Download Type: | USB 2.0 interface |
| Full Memory Download Time: | Approximately 1.5 minutes |
| LCD: | LCD is visible from 0° to 50°C (32° to 122°F); the LCD may react slowly or go blank in temperatures outside this range |
| Size: | 13.97 x 7.62 x 4.75 cm (5.5 x 3 x 1.87 in.) |
| Weight: | 230.8 g (8.14 oz) |
| Ratings: | IP50;  UL Listed; UL Listed to Canadian safety standards |
| Calibration: | This device has been calibrated using equipment that has been tested in accordance with ANSI C12.20 0.5%. |
 |
