Overview

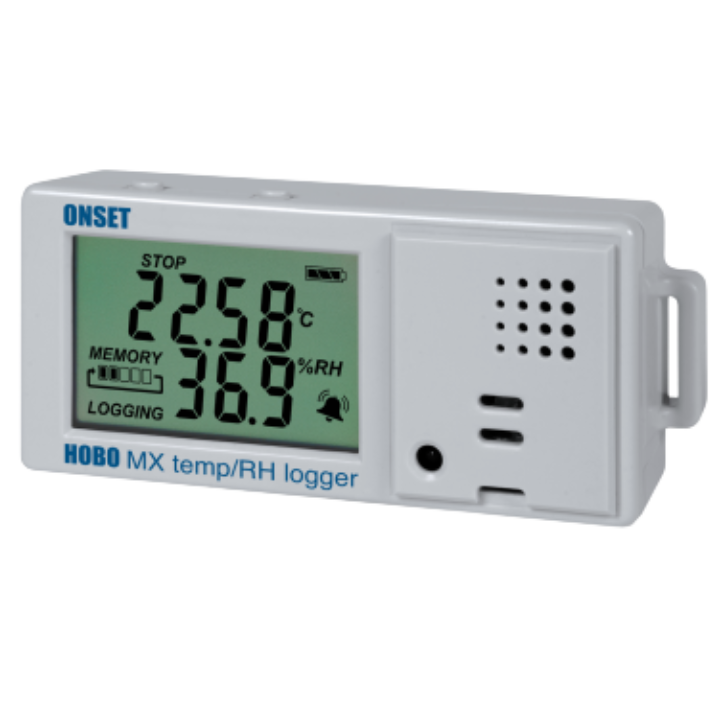

Measures and transmits temperature and relative humidity data wirelessly to mobile devices or Windows computers via Bluetooth technology.
This self-contained wireless data logger works with your mobile device or Windows computer and Onset’s free HOBOconnect app so you can configure the logger and download data when within 100 feet of the logger, with no other dedicated equipment required. You can also view data in graphs, check the operational status of the logger, configure alarm notifications, and share data files.
Purchase an MX Data Plan to get more out of your data and access it from anywhere using the LI-COR Cloud software platform (formerly HOBOlink)! You can also purchase the MX Gateway station, which automatically offloads your logger’s data via Bluetooth and sends it to LI-COR Cloud.
Features
- Wireless communication via Bluetooth technology
- Easy to deploy and offload using the free HOBOconnect app
- Visual and audible high & low alarm thresholds
- Stores 84,000 measurements
- Accuracy: +/- 0.2C and +/- 2%RH
- Find me/pager feature
- Patented connectivity technology
Specifications
Temperature Sensor
Range -20° to 70°C (-4° to 158°F)
Accuracy ±0.21°C from 0° to 50°C, see manual for plot
(±0.38°F from 32° to 122°F, see manual for plot)
Resolution 0.024°C at 25°C, see manual for plot
(0.04°F at 77°F, see manual for plot)
Drift <0.1°C per year (0.18°F per year)
RH Sensor*
Range 1% to 90% (non-condensing)
Accuracy ±2% from 20% to 80% typical to a maximum of
±4.5% including hysteresis at 25°C (77°F);
below 20% and above 80% ±6% typical
Resolution 0.01%
Drift <1% per year typical
Response Time
Temperature 7:30 minutes in air moving 1 m/s
7:30 minutes in air moving 2.2 mph
RH 20 seconds to 90% in airflow of 1 m/s
20 seconds to 90% in airflow of 2.2 mph
Logger
Radio Power 1 mW (0 dBm)
Transmission Range Approximately 30.5 m line-of-sight
Approximately 100 ft line-of-sight
Wireless Data Standard Bluetooth Low Energy (Bluetooth Smart)
Logger Operating Range -20° to 70°C; 0 to 95% RH (non-condensing)
-4° to 158°F; 0 to 95% RH (non-condensing)
Logging Rate 1 second to 18 hours
Logging Modes Fixed interval (normal, statistics) or burst
Memory Modes Wrap when full or stop when full
Start Modes Immediate, push button, date & time, or next interval
Stop Modes When memory full, push button, date & time, or after a set
logging period
Restart Mode Push button
Time Accuracy ±1 minute per month at 25°C
±1 minute per month at 77°F
Battery Life
1 year, typical with logging interval of 1 minute. Faster logging and/or statistics sampling intervals, entering burst logging mode, and remaining connected with the app will impact battery life. Excessive readouts, audible alarms, and paging all impact battery life. Visual alarms and other events can have a marginal impact on battery life.
Battery Type Two AAA 1.5 V alkaline batteries, user replaceable
Memory 128 KB (84,650 measurements, maximum)
Full Memory Download Time
Approximately 60 seconds; may take longer the further the device is from the logger
LCD LCD is visible from 0° to 50°C;
LCD is visible from 32° to 122°F;
the LCD may react slowly or go blank in temperatures outside this
range
Size 3.66 x 8.48 x 2.29 cm
1.44 x 3.34 x 0.9 in.
Weight 56 g (1.98 oz)
Environmental Rating IP50
Notices
*
Per RH sensor manufacturer data sheet
