Hettich MIKRO 220 - Sigmatech Inc.

Microliter Centrifuges

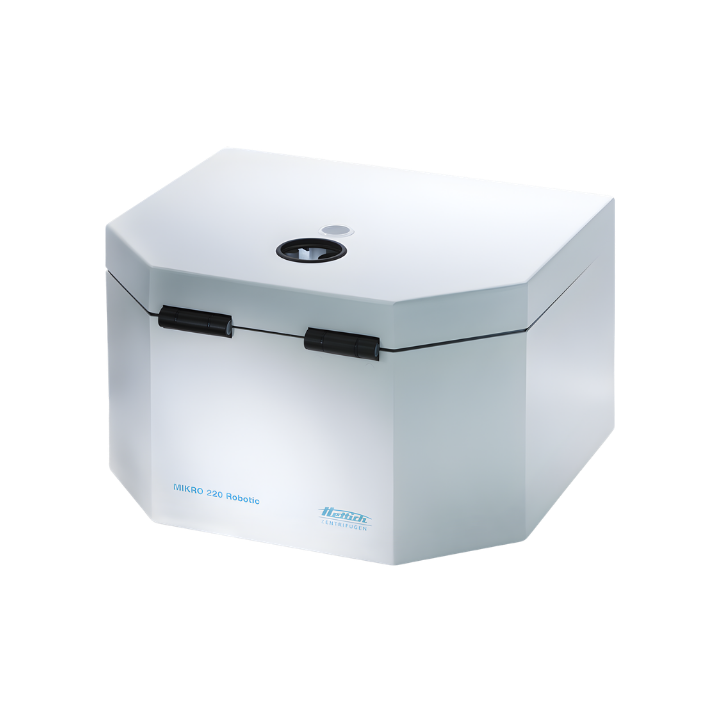

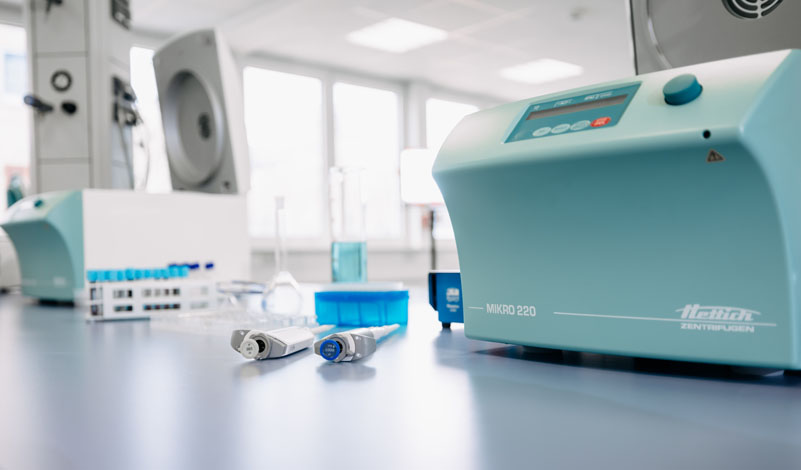

MIKRO 220

Ultra-High Speed Performance: Reaches speeds up to 18,000 rpm with a maximum RCF of 31,514 × g, enabling rapid and efficient separation of microliter samples for demanding laboratory workflows.
High Sample Capacity: Processes up to 60 × 2.0 mL tubes or 6 × 50 mL conical tubes, allowing high throughput while maintaining a compact benchtop footprint.
Flexible Rotor Configurations: Compatible with multiple rotor options for microliter tubes, PCR strips, spin columns, blood tubes, and conical tubes, supporting a wide range of clinical and research applications.
Optional Refrigeration System: The MIKRO 220 R model provides temperature control from −20 °C to +40 °C with a pre-cooling function, ensuring protection for temperature-sensitive samples.
Programmable and Intuitive Controls: Easy-to-use keypad and control knob with 9 programmable memory settings, impulse (short-spin) function, and adjustable acceleration and braking stages for flexible operation.
Advanced Safety System: Includes automatic rotor recognition, imbalance detection and shut-off, motorized lid lock with emergency release, and stainless-steel chamber for safe and reliable centrifugation.

Ultra-High Speed Performance: Reaches speeds up to 18,000 rpm with a maximum RCF of 31,514 × g, enabling rapid and efficient separation of microliter samples for demanding laboratory workflows.
High Sample Capacity: Processes up to 60 × 2.0 mL tubes or 6 × 50 mL conical tubes, allowing high throughput while maintaining a compact benchtop footprint.
Flexible Rotor Configurations: Compatible with multiple rotor options for microliter tubes, PCR strips, spin columns, blood tubes, and conical tubes, supporting a wide range of clinical and research applications.
Optional Refrigeration System: The MIKRO 220 R model provides temperature control from −20 °C to +40 °C with a pre-cooling function, ensuring protection for temperature-sensitive samples.
Programmable and Intuitive Controls: Easy-to-use keypad and control knob with 9 programmable memory settings, impulse (short-spin) function, and adjustable acceleration and braking stages for flexible operation.
Advanced Safety System: Includes automatic rotor recognition, imbalance detection and shut-off, motorized lid lock with emergency release, and stainless-steel chamber for safe and reliable centrifugation.

Fast and flexible

The MIKRO 220 spins at an unmatched speed of 18,000 RPM and delivers an RCF of 31,514 in just 26 seconds. Ultimate flexibility is provided by a choice of 8 different rotors from 0.2 ml microliter tubes to 50 ml conical tubes, allowing for numerous research applications on a single machine.

Areas of applications

Clinical

Spin pediatric tubes in a small compact footprint as well as PCR mini kits including spin columns up to 31, 514 RCF and lipemic samples with a g-force of 21, 185 at a fraction of the cost of an ultracentrifuge.

Industry and Research

Spin PCR Mini Kits including spin columns and microliter tubes to sediment subcellular particles or bacteria.

Facilities

Hospitals
Paediatric hospitals
Blood centers
Pharmaceutical hospitals
Food analyzing labs
Scientific labs in universities
Forensic labs
Paternity testing labs

The right accessories for this centrifuge

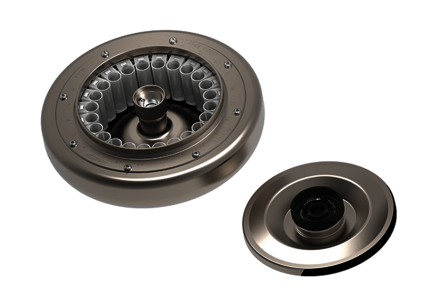

Swing-out rotor, 24-place

Max. RCF: 18,516
Max. RPM: 13,000 min^-1
Max. capacity: 24 x 2 ml
Angle: 90°
Standard equipment: Incl. Bio-containment lid
Cat.No.: 1154-L

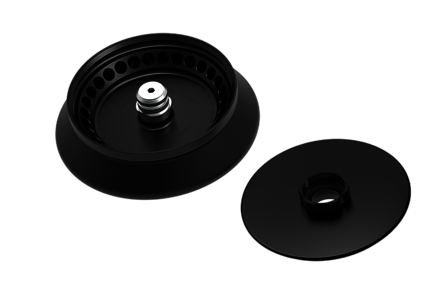

Angle rotor, 24-place

Max. RCF: 31,514
Max. RPM: 18,000 min^-1
Max. capacity: 24 x 2 ml
Angle: 45°
Standard equipment: Incl. Bio-containment lid
Cat.No.: 1195-A

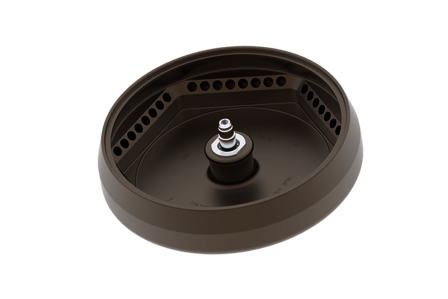

Angle rotor, 30-place

Max. RCF: 21,255
Max. RPM: 14,000 min^-1
Max. capacity: 30 x 2 ml
Angle: 45°
Standard equipment: Incl. Bio-containment lid
Cat.No.: 1189-A

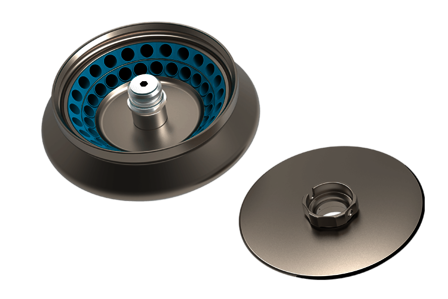

Angle rotor, 48-place

Max. RCF: 21,255 + 18,845 (inner row)
Max. RPM: 14,000 min^-1
Max. capacity: 48 x 2 ml
Angle: 45°
Standard equipment: Incl. Bio-containment lid
Cat.No.: 1158-L
