Benchtop Centrifuges

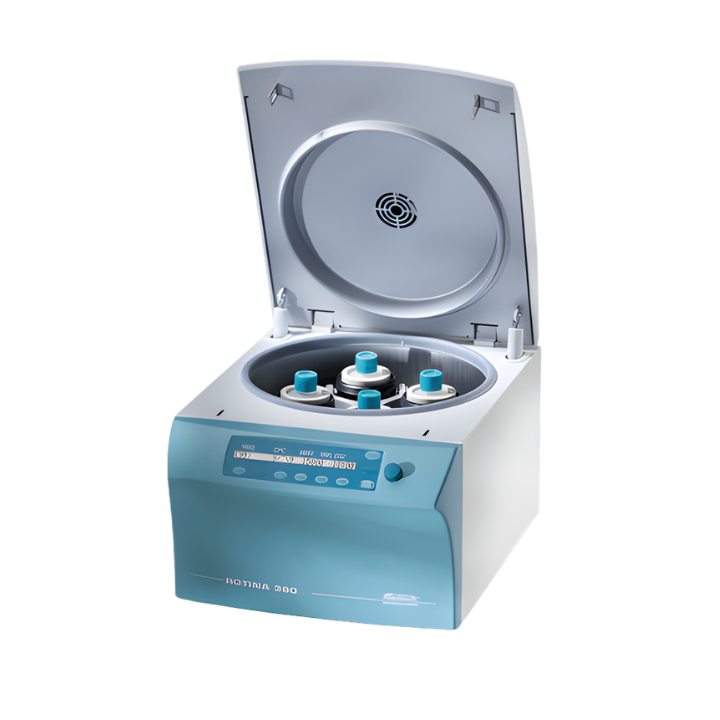

ROTINA 380

High-Speed Performance: Delivers speeds up to 15,000 rpm with a maximum RCF of 24,400 × g, enabling rapid and efficient separation for demanding laboratory workflows.
Large Sample Capacity: Supports up to 4 × 290 mL containers and can process large numbers of blood tubes, conical tubes, plates, and bottles in a single run.
Versatile Rotor System: Compatible with a wide range of swing-out rotors, fixed-angle rotors, and plate rotors, allowing multiple sample formats and applications using one centrifuge platform.
Space-Saving Benchtop Design: Compact footprint (approx. 457 mm width) provides powerful centrifugation performance while maximizing valuable laboratory bench space.
Optional Refrigeration System: The refrigerated model provides temperature control from −20 °C to +40 °C, protecting temperature-sensitive samples during centrifugation.
Enhanced Safety and Durability: Features an auto-locking lid, reinforced metal chamber, and robust construction, ensuring safe and reliable operation in high-throughput laboratory environments.

High-Speed Performance: Delivers speeds up to 15,000 rpm with a maximum RCF of 24,400 × g, enabling rapid and efficient separation for demanding laboratory workflows.
Large Sample Capacity: Supports up to 4 × 290 mL containers and can process large numbers of blood tubes, conical tubes, plates, and bottles in a single run.
Versatile Rotor System: Compatible with a wide range of swing-out rotors, fixed-angle rotors, and plate rotors, allowing multiple sample formats and applications using one centrifuge platform.
Space-Saving Benchtop Design: Compact footprint (approx. 457 mm width) provides powerful centrifugation performance while maximizing valuable laboratory bench space.
Optional Refrigeration System: The refrigerated model provides temperature control from −20 °C to +40 °C, protecting temperature-sensitive samples during centrifugation.
Enhanced Safety and Durability: Features an auto-locking lid, reinforced metal chamber, and robust construction, ensuring safe and reliable operation in high-throughput laboratory environments.

High speed with space saving design

High performance unit supporting a wide array of accessories for multiple applications in just one rotor. Its size and performance makes it the ideal bench top centrifuge for most clinical, research and industrial laboratories.

Areas of applications

Clinical chemistry, Hematology, PCR

Ideal for medium to HTP labs processing large quantities of blood collection tubes, in swing- out rotors and angle rotors.

Research and Industry, Cell Culture

Equipment for medium size PCR kits is available as well as for 5 ml conical tubes, reaching 4.800 g.

A multitude of containers for cell culture can be spun as well as conical tubes (50 ml) for the passaging of cells. Apart from that a vast variety of plates and racks for solid phase assays or for cell culture assays can be processed in this centrifuge.

Facilities

Hospitals
Hematological labs
Small blood centers
Veterinary labs
Pharmaceutical companies
Food analyzing labs
Scientific labs in universities
Forensic labs
Paternity testing labs
Environmental testing labs
Cell culture labs

The right accessories for this centrifuge

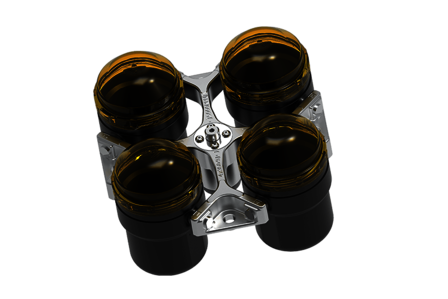

Swing-out rotor, 4-place

Max. RCF: 4,863
Max. RPM: 5,000 min^-1
Max. capacity: 4 x 290 ml
Angle: 90°
Standard equipment: Incl. Bio-Containment lid
Cat.No.: 1754+1752+1751

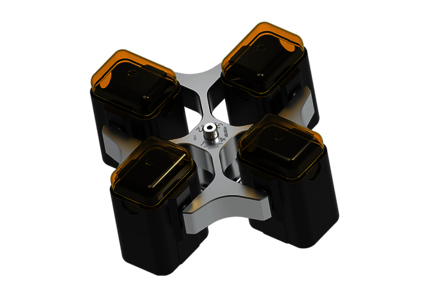

Swing-out rotor, 4-place

Max. RCF: 2,898
Max. RPM: 4,000 min^-1
Max. capacity: 4 x 290 ml
Angle: 90°
Cat.No.: 1798+5001+5053

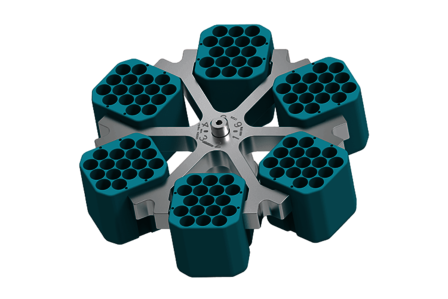

Swing-out rotor, 6-place

Max. RCF: 2,808
Max. RPM: 4,000 min^-1
Max. capacity: 6 x 50 ml
Angle: 90°
Cat.No.: 1726+1372

Swing-out rotor, 2-place

Max. RCF: 2,397
Max. RPM: 4,000 min^-1
Max. capacity: 10 plates
Angle: 90°
Cat.No.: 1760+1753-A

Angle rotor, 6-place

Max. RCF: 13,640
Max. RPM: 10,000 min^-1
Max. capacity: 6 x 94 ml
Angle: 45°
Standard equipment: Incl. Bio-Containment lid
Cat.No.: 1792

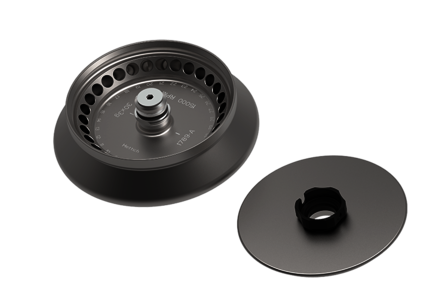

Angle rotor, 30-place

Max. RCF: 24,400
Max. RPM: 15,000 min^-1
Max. capacity: 30 x 2.0 ml
Angle: 45°
Standard equipment: Incl. Bio-Containment lid
Cat.No.: 1789-A
