Hettich ROTINA 420 - Sigmatech Inc.

Benchtop Centrifuges

ROTINA 420

Versatile Benchtop Centrifugation: Designed for routine clinical, research, and industrial applications with capacity for 4 × 100 mL tubes and a variety of rotor options.

Powerful Separation Performance: Achieves speeds up to 4,000 rpm with a maximum RCF up to 3,798 × g, enabling efficient separation across a wide range of sample types.

Flexible Rotor System: Supports a range of interchangeable rotors and adapter kits for tubes, bottles, and specialty formats, adding workflow flexibility to meet diverse laboratory needs.

Intuitive Digital Controls: User‑friendly keypad and display with programmable run times, adjustable speed control, and impulse (short‑spin) function for straightforward operation.

Quiet, Durable Drive: Brushless motor and reinforced chamber ensure quiet operation (≤ 58 dB(A)) and long‑lasting performance with minimal maintenance.

Advanced Safety Features: Equipped with automatic rotor recognition, imbalance detection with automatic shut‑off, motorized lid lock with emergency release, and robust housing for reliable centrifugation.

Optional Refrigeration (420 R): The Rotina 420 R model adds refrigerated operation (+4 °C to +40 °C) to protect temperature‑sensitive samples during centrifugation.

Versatile Benchtop Centrifugation: Designed for routine clinical, research, and industrial applications with capacity for 4 × 100 mL tubes and a variety of rotor options.
Powerful Separation Performance: Achieves speeds up to 4,000 rpm with a maximum RCF up to 3,798 × g, enabling efficient separation across a wide range of sample types.
Flexible Rotor System: Supports a range of interchangeable rotors and adapter kits for tubes, bottles, and specialty formats, adding workflow flexibility to meet diverse laboratory needs.
Intuitive Digital Controls: User‑friendly keypad and display with programmable run times, adjustable speed control, and impulse (short‑spin) function for straightforward operation.
Quiet, Durable Drive: Brushless motor and reinforced chamber ensure quiet operation (≤ 58 dB(A)) and long‑lasting performance with minimal maintenance.
Advanced Safety Features: Equipped with automatic rotor recognition, imbalance detection with automatic shut‑off, motorized lid lock with emergency release, and robust housing for reliable centrifugation.
Optional Refrigeration (420 R): The Rotina 420 R model adds refrigerated operation (+4 °C to +40 °C) to protect temperature‑sensitive samples during centrifugation.

This compact benchtop centrifuge has been developed for large sample volumes. It has a maximum capacity of 4 x 600 ml bottles, 140 blood tubes, 16 microtiter plates or 52 x 15 ml conical tubes, all on a single cost-effective rotor.

Best conditions for your application

Single-hand clamp lock for easy loading, unloading, transport and sealing

The carrier buckets for the ROTINA 420 have been updated to feature an integrated handle, providing a convenient method for transporting and loading your samples. This handle also doubles as a locking mechanism for your bio-containment lids.

Areas of applications

Clinical chemistry, Hematology, Serology

HTP centrifuge suitable for large laboratories such as blood banks or high-throughput clinical labs.

Research and Industry, Cell culture, Assays

One rotor fits multiple flasks, bottles and plates, offering many options for cell culture and/or solid phase assays.

Facilities

Hospitals
Hematological labs
Blood centers
Veterinary labs
Pharmaceutical labs
Food analyzing labs
Scientific labs in universities

The right accessories for this centrifuge

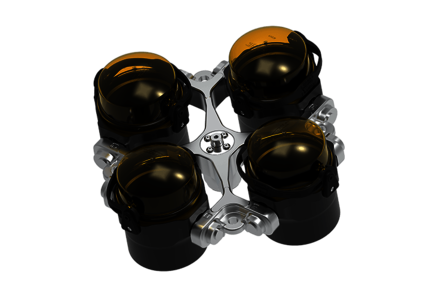

Swing-out rotor, 4-place

Max. RCF: 4,800
Max. RPM: 4,740 min^-1
Max. capacity: 4 x 600 ml
Angle: 90°
Standard equipment: Incl. Bio-Containment lid
Cat.No.: 4784-A+4780+4783

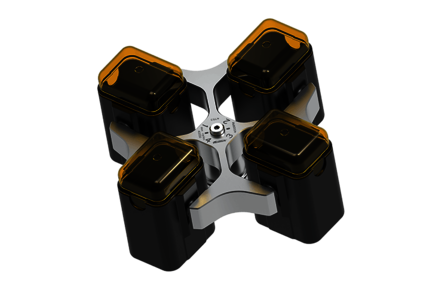

Swing-out rotor, 4-place

Max. RCF: 2,898
Max. RPM: 4,000 min^-1
Max. capacity: 4 x 290 ml
Angle: 90°
Cat.No.: 4753+5051+5053

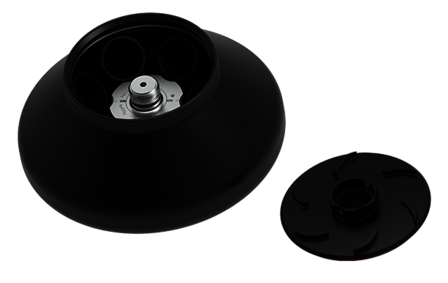

Angle rotor, 4-place

Max. RCF: 12,007
Max. RPM: 9,500 min^-1
Max. capacity: 4 x 250 ml
Angle: 25°
Cat.No.: 4795

Angle rotor, 6-place

Max. RCF: 16,504
Max. RPM: 11,000 min^-1
Max. capacity: 6 x 94 ml
Angle: 45°
Standard equipment: Incl. Bio-Containment lid
Cat.No.: 4794

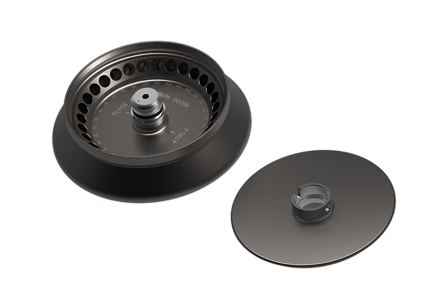

Angle rotor, 30-place

Max. RCF: 24,400
Max. RPM: 15,000 min^-1
Max. capacity: 30 x 2.0 ml
Angle: 45°
Standard equipment: Incl. Bio-Containment lid
Cat.No.: 4790-A

DOWNLOADS

Data sheet | ROTINA 420 | 420 R
