Overview

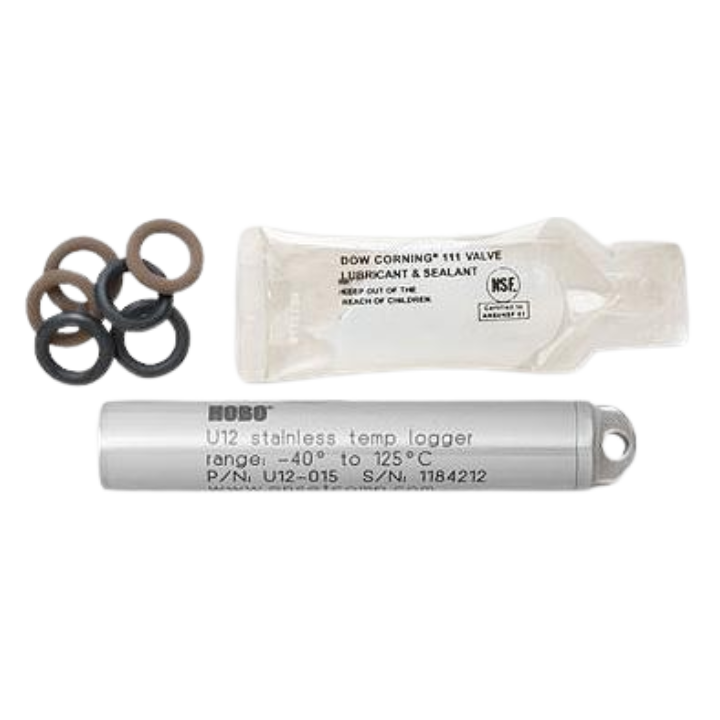

An ideal data logger for food, pharmaceutical, autoclave, and other applications where high-accuracy temperature data is critical. With its broad temperature range (-40 to 125C) and food-grade stainless-steel housing, this logger withstands process conditions, from pasteurization to flash freezing and washdown. This logger is also well suited for high-temperature or deep underwater applications.
Features
- Food-grade 316 Series Stainless Steel
- High-accuracy, extended temperature range
- Suitable for high pressure applications to 2200psi
- Fast readout via direct USB interface
- Compatible with HOBOware and HOBOware Pro for logger setup and graphing & analysis
Specifications
Logger
Measurement Range
-40° to 125°C
-40° to 257°F
Accuracy
±0.25°C from 0° to 50°C , see manual for plot
±0.45°F from 32° to 122°F , see manual for plot
Resolution
0.03°C at 25°C , see manual for plot
0.05°F at 77°F , see manual for plot
Drift
0.09°F/year + 0.2°F/1000 hrs above 212°F
Response Time in 1 m/s (2.2 mph) airflow
U12-015: <10 minutes, typical to 90%
U12-015-02: 2.25 minutes, typical to 90%
Response Time in Water
U12-015: <3.5 minutes, typical to 90%
U12-015-02: 20 seconds, typical to 90%
Time Accuracy
±2 minute per month at 25°C (77°F)
Operating Environment
Air, water, steam, 0 to 100% RH
Operating Temperature
Logging: -40° to 125°C (-40° to 257°F)
Launch/readout: 0° to 50°C (32° to 122°F), per USB specification
Battery Life
3 year typical use, factory replaceable
Memory
64K bytes (43,000 12-bit measurements)
Construction
316 series stainless steel, EPDM or Viton O-ring; see Food-Grade Compliance section for additional details
Weight
U12-015: 72 g (2.5 oz)
U12-015-02: 82 g (2.9 oz)
Logger Dimensions
17.5 x 101.6 mm
0.69 x 4.00 inches
Probe Dimensions (U12-015-02 only)
4 x 124 mm
0.16 x 4.90 inches
Pressure/Depth Rating
2200 psi maximum
1500 m/4900 ft maximum
NIST Certificate
-22° to 248°F
