Hettich EBA 270 - Sigmatech Inc.

Small Centrifuges

EBA 270

Swing‑Out Rotor for Flat Separation: Built‑in 6‑place 90° swing‑out rotor delivers horizontal separation of blood and urine tubes up to 15 mL, ideal for clinical applications and gel‑containing samples.
Efficient Centrifugation Performance: Achieves speeds up to 4,000 RPM (2,254 × g) for fast and effective sample processing in physician offices, small labs, and medical facilities.
Robust and Safe Construction: Features a plastic housing with metal lid, one‑hand lid lock, emergency lid release, and imbalance shut‑off for secure and reliable operation.
User‑Friendly Operation: Easy‑to‑use keypad with backlit display, impulse (short‑spin) key, audible end‑of‑cycle signal, and adjustable run times make it intuitive and flexible to program.
Quiet and Durable Design: Brushless motor and reinforced stainless steel chamber ensure quiet operation (≤ 51 dB(A)) and long‑lasting performance with minimal maintenance.

Swing‑Out Rotor for Flat Separation: Built‑in 6‑place 90° swing‑out rotor delivers horizontal separation of blood and urine tubes up to 15 mL, ideal for clinical applications and gel‑containing samples.
Efficient Centrifugation Performance: Achieves speeds up to 4,000 RPM (2,254 × g) for fast and effective sample processing in physician offices, small labs, and medical facilities.
Robust and Safe Construction: Features a plastic housing with metal lid, one‑hand lid lock, emergency lid release, and imbalance shut‑off for secure and reliable operation.
User‑Friendly Operation: Easy‑to‑use keypad with backlit display, impulse (short‑spin) key, audible end‑of‑cycle signal, and adjustable run times make it intuitive and flexible to program.
Quiet and Durable Design: Brushless motor and reinforced stainless steel chamber ensure quiet operation (≤ 51 dB(A)) and long‑lasting performance with minimal maintenance.

Superior separation results in medical applications

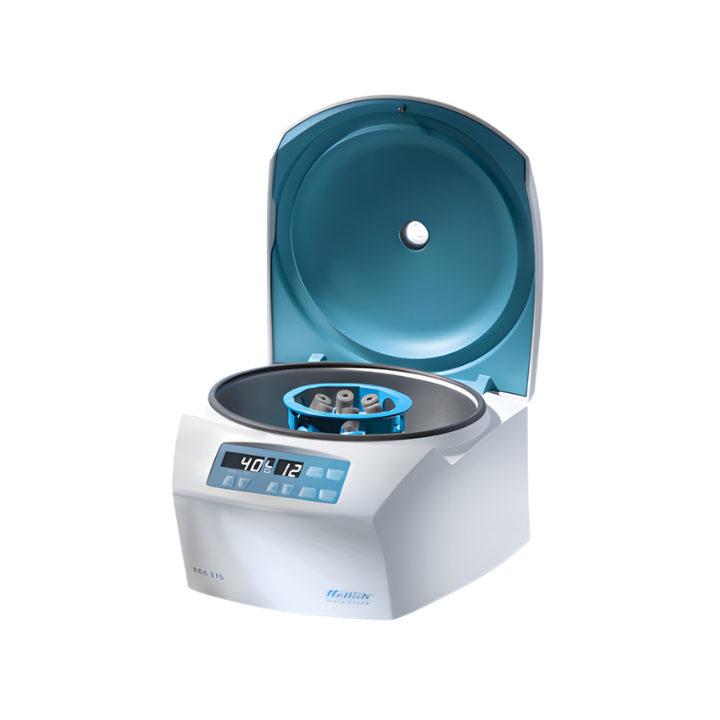

The EBA 270 is a small centrifuge with a swing-out rotor that has been developed specifically for use in clinical settings. It can centrifuge the blood tubes and urine tubes up 15 ml in volume at a maximum speed of 4,000 RPM / 2,254 RCF. Its 90° rotor is ideally suited for spinning blood tubes containing a separating gel.

Areas of applications

Clinical

The built in swing-out rotor 6-places is perfect for blood collection tubes containing gel.

Facilities

Small laboratories
Physician’s Office Laboratory (POL)

The right accessories for this centrifuge

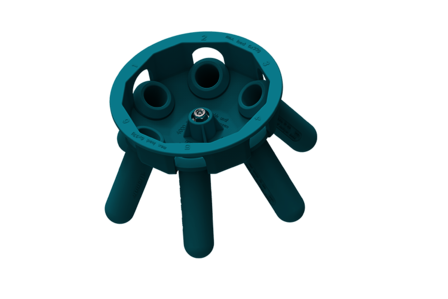

Built-in Swing-out rotor, 6-place

Max. RCF: 2,254 ml
Max. RPM: 4,000 min^-1
Max. capacity: 6 x 15 ml
Angle: 90°
