Double Beam Spectrophotometer​

UH5300​

The technology for spectrophotometers continues to advance. Hitachi designs double beam spectrophotometers encompassing technologies for the future.​



Tags: Hitachi Double Beam Spectrophotometer​ UH5300​ ​Sigmatech Inc. Philippines
Key Industries: Batteries, Pharmaceutical, Water and Wastewater and more.

Performance: This level of performance allows for highly accurate data to be obtained

  • Use of long-life xenon flash lamp
    Light source is guaranteed for seven years*1 resulting in lower operation cost
  • Double-beam optical system
    Ensures extended periods of data stability compared with the single-beam optical system.
    Best-of-class levels*2 of resolution of 1 nm have been achieved.

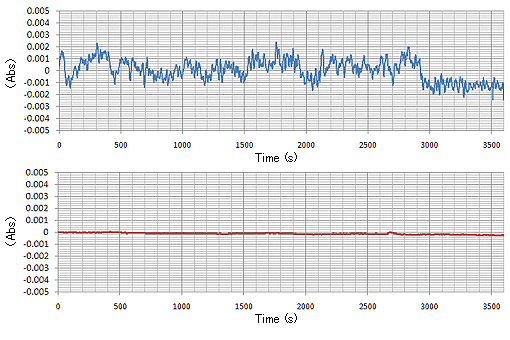

Comparison of baseline stability Single-beam device (above)
Double-beam device (below : UH5300)

Operation: Hitachi offers a new type of operation in laboratories.

  • Operation by use of tablet terminals or PC
    Simple and intuitive user interface

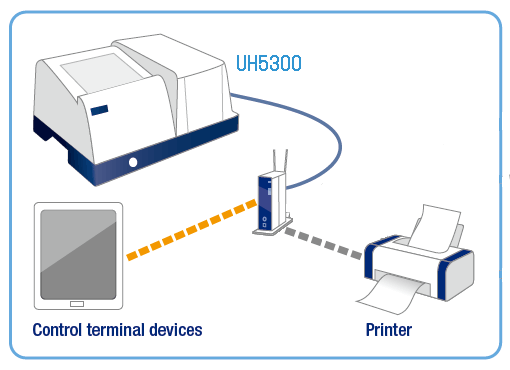

  • Remote control through wireless communication
    Flexible operating environment
A new way of operating a spectrophotometer

Other Features

  • Simple and easy-to-understand performance check function
    Assures the accuracy of data
  • Automatic 6-cell turret as standard equipment
    Improved efficiency and increased sample throughput

Software: Expand measurement possibilities just by touching the screen.

The control software is designed with emphasis on simple and intuitive operability, providing an easy-to-follow measurement flow, even for someone who is unfamiliar with a spectrophotometer.

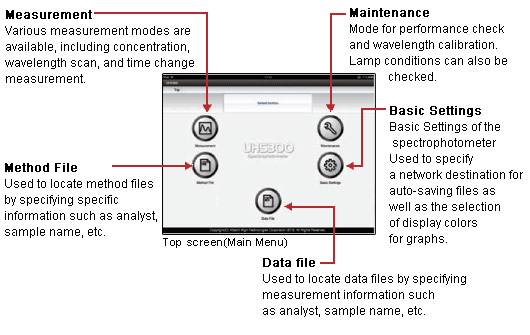

Main menu of the UH5300

*1Registration of the product is required. For further information, please ask your dealer. The lamp is guaranteed against failure for seven years after the date of delivery or for a specified number of lamp illuminations, whichever comes first.
The specified number of illuminations is represented as a percentage (%), depending on the working conditions of the lamps, in the maintenance menu of the UH5300, in reference to a lamp working condition of 100%.
Assuming that the spectrophotometer is used for seven years, 240 days a year, the lamp working condition of 100% corresponds to 300 measurement events of absorbance measurement per day (number of wavelengths : one wavelength) or 20 measurement events per day for of wavelength scan measurement per day (scan range : 190 to 1,100 nm, scan speed : 200 nm/min).*2Survey by Hitachi High-Tech Corporation. Models offered for sale in the Japanese market as of August, 2012.*3For more information about the system, please contact us.*Operation software is built into the UH5300*For information on AirPrint-compatible devices, see the Apple website

See more



Sigmatech Inc. Philippines is the leading provider of cutting-edge laboratory equipment crucial for a wide range of applications, including Quality Assurance/Quality Control (QA/QC), Metrology, Research and Development (R&D), Failure Analysis, Environmental and Chemical Analysis, and Process Control. Serving diverse industries in the Philippines, such as Semiconductor/Electronics, Pharmaceutical, Mining, Energy, and more, we are your go-to source for top-quality equipment, including Double Beam Spectrophotometers in the Philippines. About us
Features

Performance: This level of performance allows for highly accurate data to be obtained

  • Use of long-life xenon flash lamp
    Light source is guaranteed for seven years*1 resulting in lower operation cost
  • Double-beam optical system
    Ensures extended periods of data stability compared with the single-beam optical system.
    Best-of-class levels*2 of resolution of 1 nm have been achieved.


Comparison of baseline stability Single-beam device (above)
Double-beam device (below : UH5300)

Operation: Hitachi offers a new type of operation in laboratories.

  • Operation by use of tablet terminals or PC
    Simple and intuitive user interface
  • Remote control through wireless communication
    Flexible operating environment

A new way of operating a spectrophotometer

Other Features

  • Simple and easy-to-understand performance check function
    Assures the accuracy of data
  • Automatic 6-cell turret as standard equipment
    Improved efficiency and increased sample throughput

Software: Expand measurement possibilities just by touching the screen.

The control software is designed with emphasis on simple and intuitive operability, providing an easy-to-follow measurement flow, even for someone who is unfamiliar with a spectrophotometer.

Main menu of the UH5300

*1
Registration of the product is required. For further information, please ask your dealer. The lamp is guaranteed against failure for seven years after the date of delivery or for a specified number of lamp illuminations, whichever comes first.
The specified number of illuminations is represented as a percentage (%), depending on the working conditions of the lamps, in the maintenance menu of the UH5300, in reference to a lamp working condition of 100%.
Assuming that the spectrophotometer is used for seven years, 240 days a year, the lamp working condition of 100% corresponds to 300 measurement events of absorbance measurement per day (number of wavelengths : one wavelength) or 20 measurement events per day for of wavelength scan measurement per day (scan range : 190 to 1,100 nm, scan speed : 200 nm/min).
*2
Survey by Hitachi High-Tech Corporation. Models offered for sale in the Japanese market as of August, 2012.
*3
For more information about the system, please contact us.
*
Operation software is built into the UH5300
*
For information on AirPrint-compatible devices, see the Apple website

See more



Sigmatech Inc. Philippines is the leading provider of cutting-edge laboratory equipment crucial for a wide range of applications, including Quality Assurance/Quality Control (QA/QC), Metrology, Research and Development (R&D), Failure Analysis, Environmental and Chemical Analysis, and Process Control. Serving diverse industries in the Philippines, such as Semiconductor/Electronics, Pharmaceutical, Mining, Energy, and more, we are your go-to source for top-quality equipment, including Double Beam Spectrophotometers in the Philippines. About us
