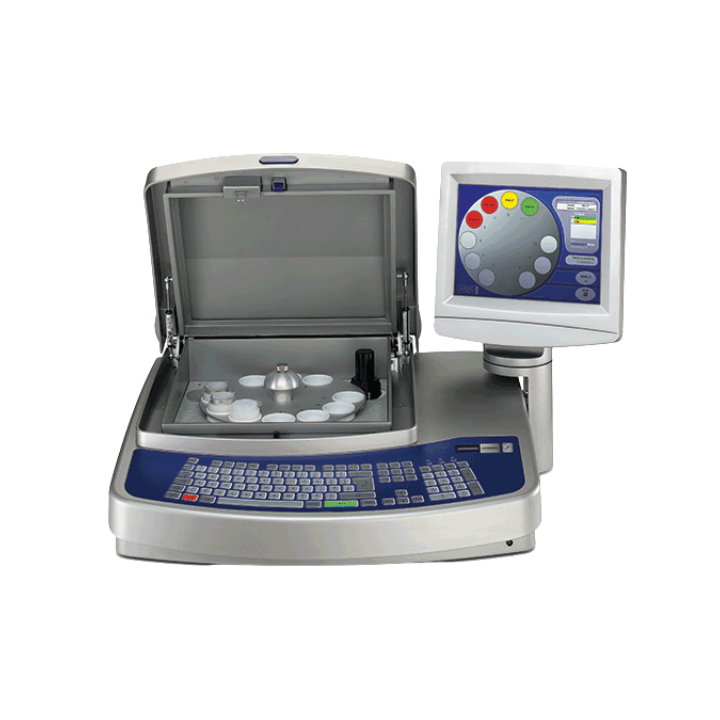

The Hitachi High-Tech X-Supreme8000 is a high-performance energy-dispersive X-ray fluorescence (EDXRF) analyzer designed for rapid elemental analysis, quality assurance, and process control. It is particularly suited to laboratories and production facilities that need to analyze large numbers of samples quickly and consistently.
The analyzer features a 10-position sample changer, allowing multiple samples to be loaded for automatic sequential analysis. This makes the X-Supreme8000 well suited for high-volume testing where unattended or continuous analysis can improve laboratory and production efficiency.
With an elemental range from Na to U, high-resolution detector, helium purge capability for improved light-element analysis, sample spinning for improved repeatability, and flexible calibration software, the X-Supreme8000 can be configured for a wide range of industrial applications.
Typical Applications:
Petroleum & Petrochemicals
- Ultra-low sulfur in fuels
- Sulfur in oils and petroleum products
- Chlorine in oils and fuels
- Nickel, vanadium, and iron in fuel oils
- Lubricating oil analysis
- Waste and used oil analysis
Specifically positions the X-Supreme8000 for high-volume petroleum testing and ultra-low sulfur analysis.
Minerals & Cement
- Iron ore
- Manganese ores
- Lead-zinc ores
- Silica sand
- Kaolin and china clay
- Cement and cement-making materials
- Gypsum
- Mineral and ceramic materials
The X-Supreme8000 is designed for rapid multi-element determination in mineral and ceramic materials and can measure key elements including sodium, aluminum, silicon, potassium, calcium, and iron.
Polymers & Plastics
- Additives
- Fillers
- Colorants
- Chlorine and bromine
- Recycled polymer quality control
Paper & Release Liners
- Silicone coating weight
- Platinum catalyst residue
- Paper and film analysis
The X-Supreme8000 can measure silicone coat weight and platinum catalyst levels for process control in silicone-coated paper and film production.
Other Applications
- Food products
- Cosmetics
- Chemicals
- Aluminum coatings
- Anodized aluminum layers
- Phosphate fertilizers
