High Sensitivity

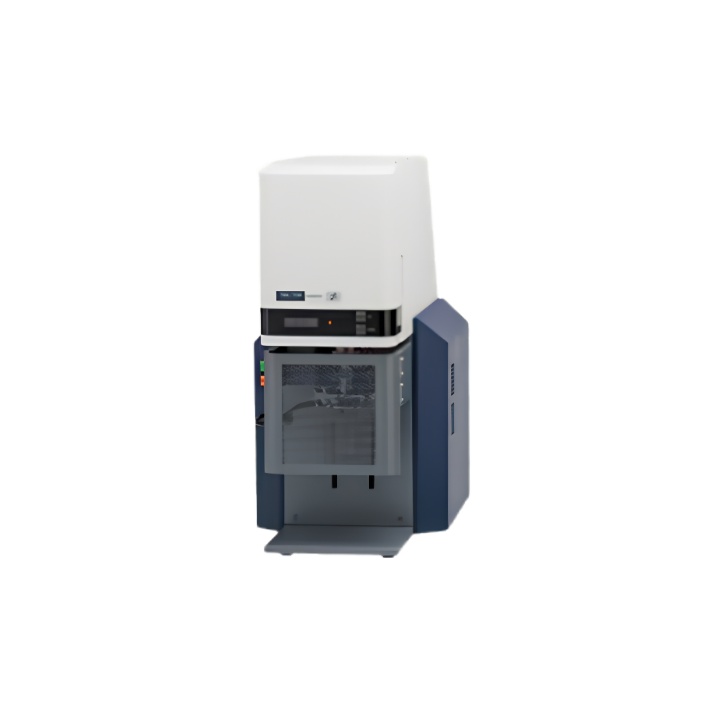

TMA7000 is equipped with newly developed “Z-stabilizer” signal optimization technology, which cuts noise levels to achieve highly sensitive measurements.
High-Temperature High-Humidity Measurements
Additional options allow measurement under high temperature and high humidity conditions. Furthermore, it is extensible to swelling and vacuum measurements.
The Eco-Friendly Cooling Unit
The eco-friendly cooling unit cuts liquefied nitrogen consumption by approximately 40% (compared to previous models). Electrical cooling units that do not use liquefied nitrogen can also be connected.
Effective Atmosphere Control
A mass flow meter can be incorporated into the gas control so the atmosphere can be efficiently controlled by not only the purge gas ON/OFF switch but also programmed flow rate control.
Improved Temperature Control Function
The new built-in temperature control function is designed to reduce the gap between the program temperature and the measurement sample temperature and improve temperature compliance.
Specifications
| Model | TMA7100 | TMA7300 |
|---|---|---|
| Sample Cylinder | Quartz, metal | Alumina |
| Temperature Range | -170 to 600°C | Ambient to 1,500°C |
| TMA Measurement Range | ±5 mm | |
| TMA Sensitivity | 0.01 µm | |
| Load Range | ±5.8 N | |
| Scan Rate | 0.01 to 100°C/min | |
| Maximum Sample Size | Expansion; Φ10×L25 mm Tension; W1×T5×L25 mm | Expansion; Φ10×L25 mm |
| Sample Length Measurement | Automated Measurement | |
Applications
Thermal Expansion of Polyvinyl chloride (PVC)
CTE (coefficient of thermal expansion) changes at the glass transition temperature. CTE after Tg is approximately 4 times larger.
Penetration on Polymer film
Comparison of softening temperatures between different polymer films, Polyethylene, Polypropylene and Nylon evaluated by penetration measurement.
Anisotropy of Polyethylene (PE) film
In above measurements of PE film, tension force is applied in machine direction (MD) and the transverse direction (TD).
Stress-Strain characteristic of Polyethylene (PE) film
The measurements are carried out on PE film with strain control mode at different temperature.
Stress-Strain Capabilities
The TMA 7000 series has stress strain measurement and analysis capability. Stress-Strain characteristic, Creep/Recovery, Stress Relaxation can be measured, and furthermore, applying sinusoidal force to samples the dynamic viscoelastic behavior can be characterized.
