• Outstanding Performance: High sensitivity and spectral resolution
• Photoluminescence Upgrade: Fourier Transform PL upgrade with a choice of laser source
• Configurable: Option for a second detector enhancing sensitivity at selected spectral ranges
• User-friendly: Simple to operate and suitable for all user levels, from beginner to advanced
• Maintenance Free: No maintenance required with moisture control technology
• Miracle™ Software: Powerful and intuitive software designed specifically for the IR5

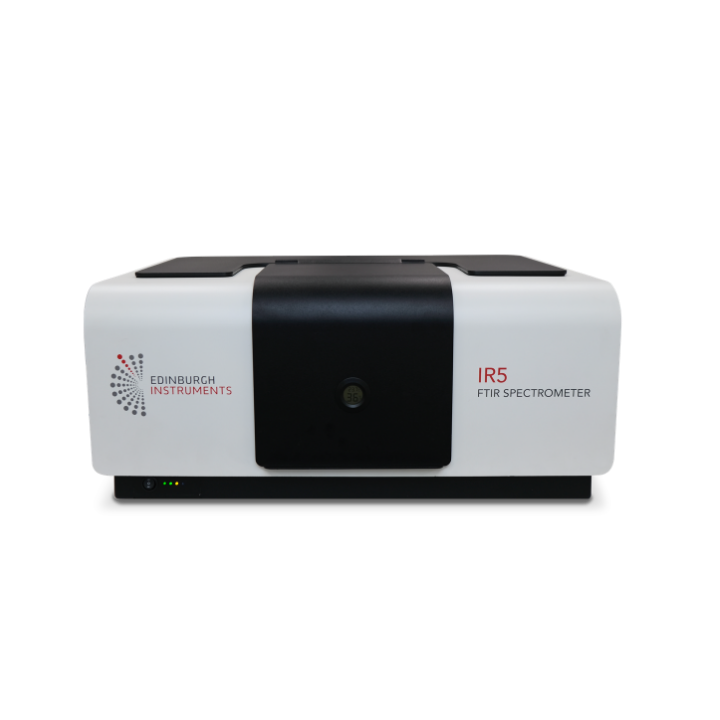

The IR5 FTIR Spectrometer stands as a pinnacle of analytical instrumentation, tailored for precise and comprehensive infrared spectroscopy. It offers researchers and analysts across diverse industries an indispensable tool for probing molecular structures and compositions with unrivalled accuracy.

The IR5 demonstrates exceptional versatility, effortlessly adapting to applications across polymers, pharmaceuticals, semiconductors, and more. Unique to the IR5 is the option to incorporate a second detector in its class of FTIR spectrometers, eliminating the need for multiple systems. The additional detector can be chosen to provide increased sensitivity in specific spectral ranges. This ensures seamless transition from routine analysis to demanding tasks requiring utmost sensitivity.

Beyond its technical excellence, the IR5 is designed for ease of use and efficiency in laboratory settings. Equipped with intuitive software, Miracle™, it enables straightforward measurement of IR absorption, transmission, reflectance, and photoluminescence—all through a single user-friendly interface.

Whether conducting routine quality control assessments or investigating complex research projects, the IR5 FTIR Spectrometer empowers scientists with rapid data acquisition capabilities and robust analytical performance. With its compact benchtop design and maintenance-free operation, the IR5 represents a reliable partner in advancing scientific discoveries and ensuring the highest standards of analytical precision.

SOFTWARE

Miracle™ software package is designed specifically for the IR5 FTIR spectrometer with a focus on ease of use and smooth workflow. Miracle controls every aspect of your experiment, from instrument setup to data acquisition, analysis and reporting, ensuring intuitive operation at every step.

Figure 1: Miracle software interface

Miracle package offers two user levels making it suitable to a wide range of applications. Standard user mode is optimal for analysis and teaching labs where routine experiments are carried out. Advanced user mode unlocks instrument configuration options and complex analysis functions, suitable for R&D and the most demanding applications.

Data analysis in Miracle is highly flexible: it is possible to undo or rearrange processing steps, so you can access the raw data and fine-tune your analysis. The software allows you to reapply apodization with a different function, for better comparison with other spectra.

MEASUREMENT EXAMPLES

ATR-FTIR is the dominant FTIR method for analysis of solids and liquids as it requires little to no sample preparation and is non-destructive. With ATR-FTIR an Internal Reflective Element (IRE) is used as the ATR crystal that the beam of radiation is directed into.

Figure 1: ATR-FTIR spectrum of Human serum.

A range of materials are available for the ATR crystal, and the decision of which one to pick is based on application area. ZnSe is suitable for routine analysis, however harder samples can cause the crystal to crack or shatter and strongly acidic or basic samples can cause toxic fumes. Germanium is suited to samples with a high refractive index and surface studies due to its smaller depth of penetration. The gold standard material for ATR crystals is diamond; it’s virtually indestructible, whilst offering high thermal conductivity for heated ATR-FTIR experiments.

Transmission FTIR spectroscopy is the most traditional method to analyse samples. Incident infrared light passes through the sample, and the amount which transmits through is measured producing an FTIR spectrum in %Transmission.

Figure 1: FTIR spectrum of CO2 gas

Transmission FTIR can be used for liquids, solids, and essential for gas phase measurements. Sample preparation is typically required for transmission measurements, solid samples may require dispersion in KBr and pressed into pellets, and IR transparent windows, such as CaF2, are required for measuring liquids.

The IR5 can host numerous other sampling accessories offering a full suite of FTIR techniques. For example, specular reflectance accessories which are particularly useful for analysing thin films. Diffuse reflectance infrared Fourier transform spectroscopy (DRIFTS) is excellent for collecting IR spectra from strongly absorbing samples with rough surfaces, such as powders.

Figure 1: Temperature study on a water-in-oil emulsion

Accessories are designed for specific end user needs, for example heated ATRs can be offered to track phase transitions in samples. Liquid transmission cells are offered to allow for fast and easy application of the sample, and for cleaning between samples with huge benefits to sample throughput.

Figure 2: FTIR spectrum of ethanol with a 50 μm path length
