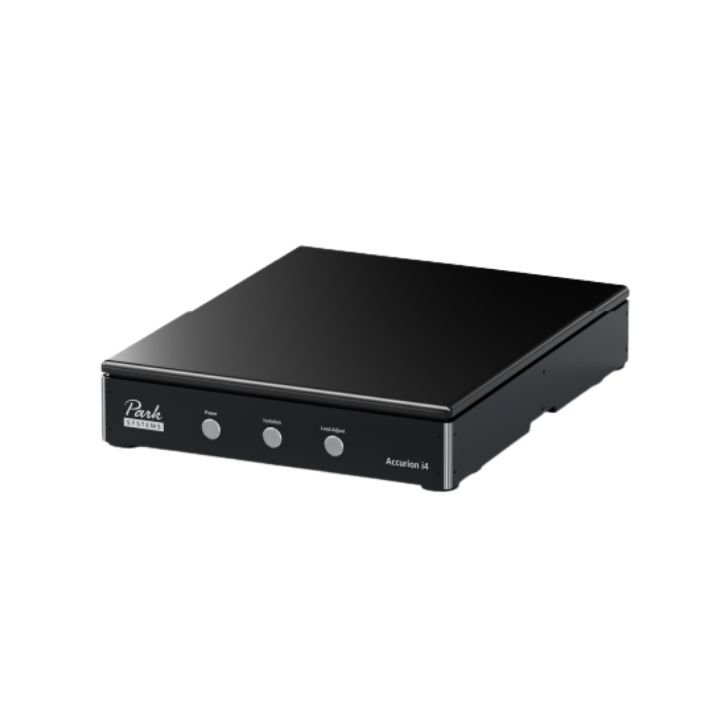

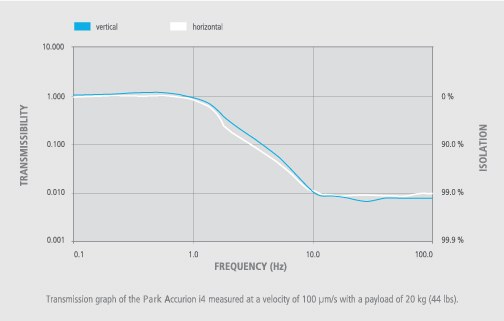

The Accurion i4 is a state-of-the-art active vibration isolation system. It is ideal for isolating high-resolution measurement equipment from building vibrations and other disturbances, while providing active compensation in all six degrees of freedom. The isolation effect starts at 0.6 Hz, achieving the maximum performance of -40 dB at 10 Hz, where 99.0% of the vibration is isolated. In addition to the extremely short settling time, the lack of low-frequency resonance proves a major advantage, whereas passive isolators amplify vibrations instead of isolating them.
Functionality reduced to the max: Accurion i4 Series
Besides the low-profile design, the system features straightforward handling for an easy operation. The control panel of the i4 is self-explanatory and the entire system is controlled by only three buttons. No manual adjusting or tuning is required which enables the user to completely focus on the application. Whereas pneumatic systems operate with compressed air supply, all you need with the i4 is a power socket.
Key Features
- Active Vibration Isolation in six degrees of freedom
- No natural low-frequency resonance – excellent vibration isolation characteristics in the low frequency range
- Active vibration isolation starts at 0.6 Hz (passive isolation > 200 Hz)
- Settling time only 0.3 s
- Automatic load adjustment and transportation lock
- High position stability due to inherent stiffness
- No compressed air required – only requires a power supply
- True active vibration isolation – immediate generation of a counterforce to compensate vibrations
- Multifunctional isolation system for a wide range of applications
